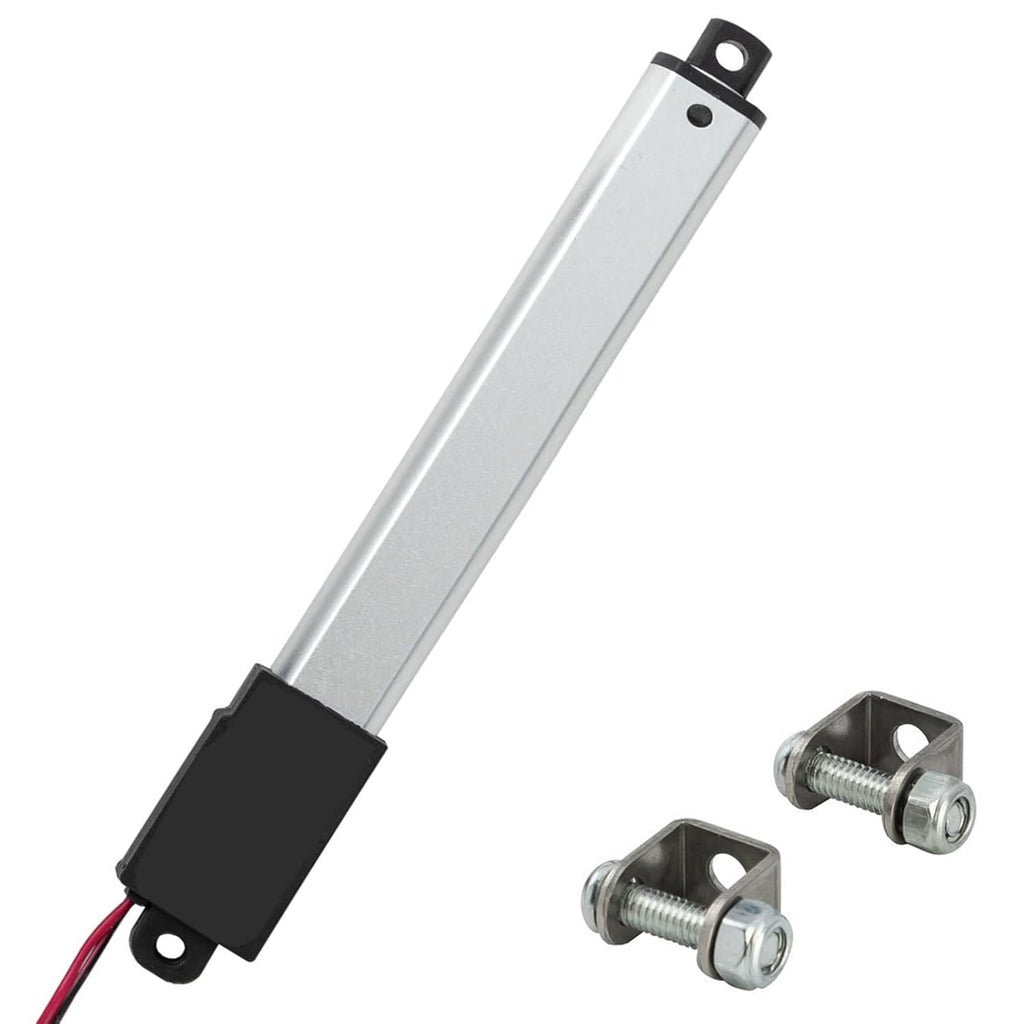

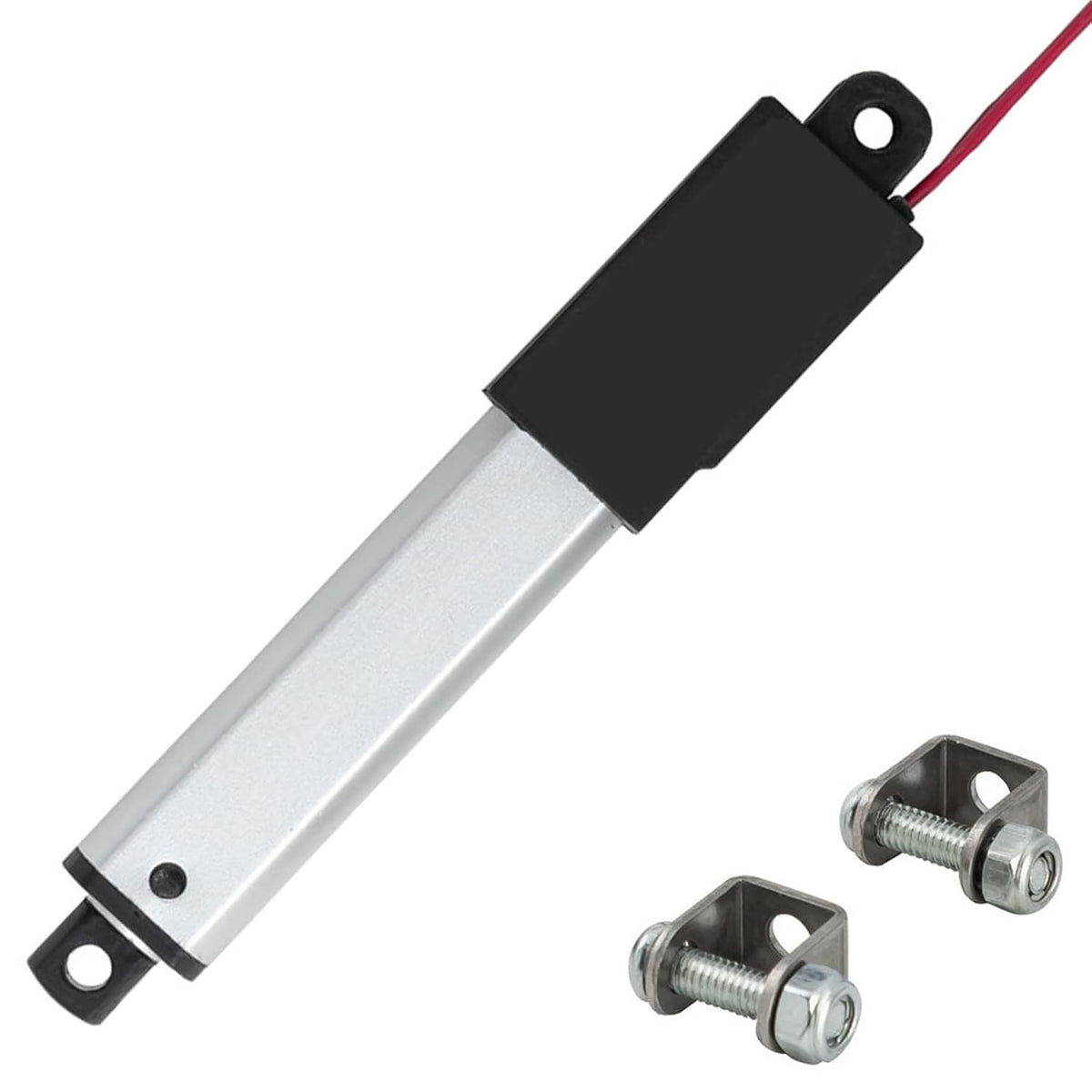

12V 75mm Mini Linear Actuator Metal Gear H173591
Sale price
$22.50
Regular price $84.78
Skip to product information
【Specification】: Stroke length: 75mm(3 inches); Retracted length: 129.5mm(5'); Extended Length: 204.5mm(8'); Maximum Load = 1.44lbs(6.4N); Input Voltage: 12VDC; Working Current: ≤200mA.
【Aluminum Alloy Material】: The rod is made of aluminum alloy, which is not easy to rust and can be used for longer. The surface has undergone 27 polishing processes and the structure design is precise.
【Protection Level】: The waterproof rating is IP54. Prevent the accumulation of harmful dust. Will not be hurt when the liquid splashes into the shell from any direction.
【Low Noise Design and Metal Gear】: Noise level ≤50dB. Up to 5th level deceleration and excellent performance.
【After-Sales Services】: If you meet any problems about the product, please feel free to contact us. We are willing to provide a pleasant purchasing experience.
12V 75mm Mini Linear Actuator Metal Gear H173591
Sale price
$22.50
Regular price $84.78
Shipping calculated at checkout.
【Specification】: Stroke length: 75mm(3 inches); Retracted length: 129.5mm(5'); Extended Length: 204.5mm(8'); Maximum Load = 1.44lbs(6.4N); Input Voltage: 12VDC; Working Current: ≤200mA.
【Aluminum Alloy Material】: The rod is made of aluminum alloy, which is not easy to rust and can be used for longer. The surface has undergone 27 polishing processes and the structure design is precise.
【Protection Level】: The waterproof rating is IP54. Prevent the accumulation of harmful dust. Will not be hurt when the liquid splashes into the shell from any direction.
【Low Noise Design and Metal Gear】: Noise level ≤50dB. Up to 5th level deceleration and excellent performance.
【After-Sales Services】: If you meet any problems about the product, please feel free to contact us. We are willing to provide a pleasant purchasing experience.
| 12V50mm64N | 12V75mm64N | 12V100mm19.2N | 12V100mm32N | 12V100mm64N | |
|---|---|---|---|---|---|
| Speed | 15mm/s | 15mm/s | 50mm/s | 30mm/s | 15mm/s |
| Noise | ≤50dB | ≤50dB | ≤50dB | ≤50dB | ≤50dB |
| Input Voltage | 12V | 12V | 12V | 12V | 12V |
| Duty Circle | 10% | 10% | 10% | 10% | 10% |
