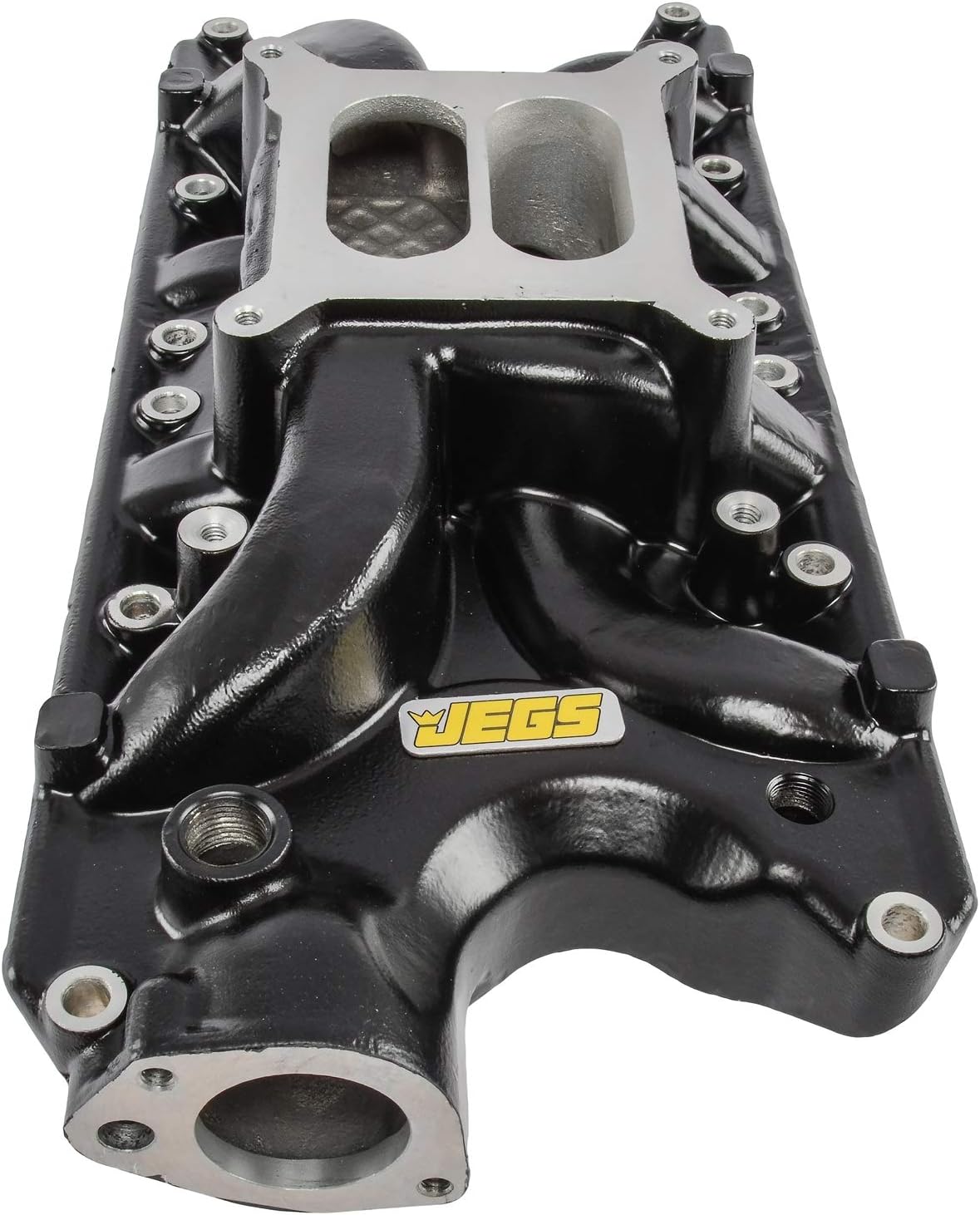

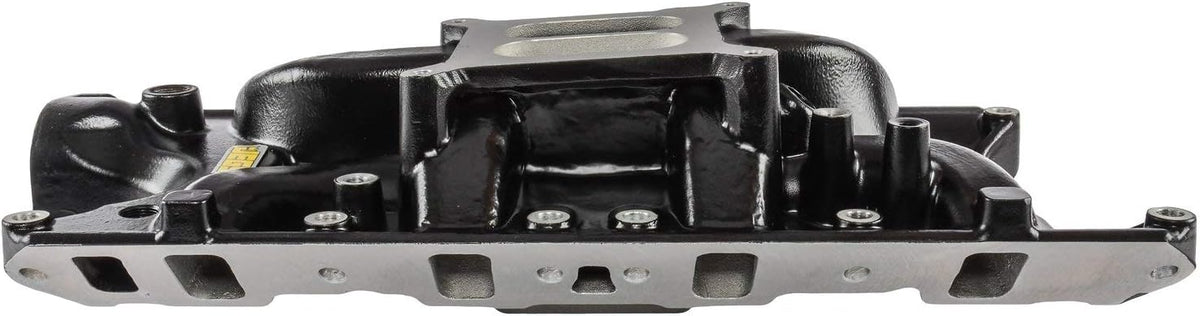

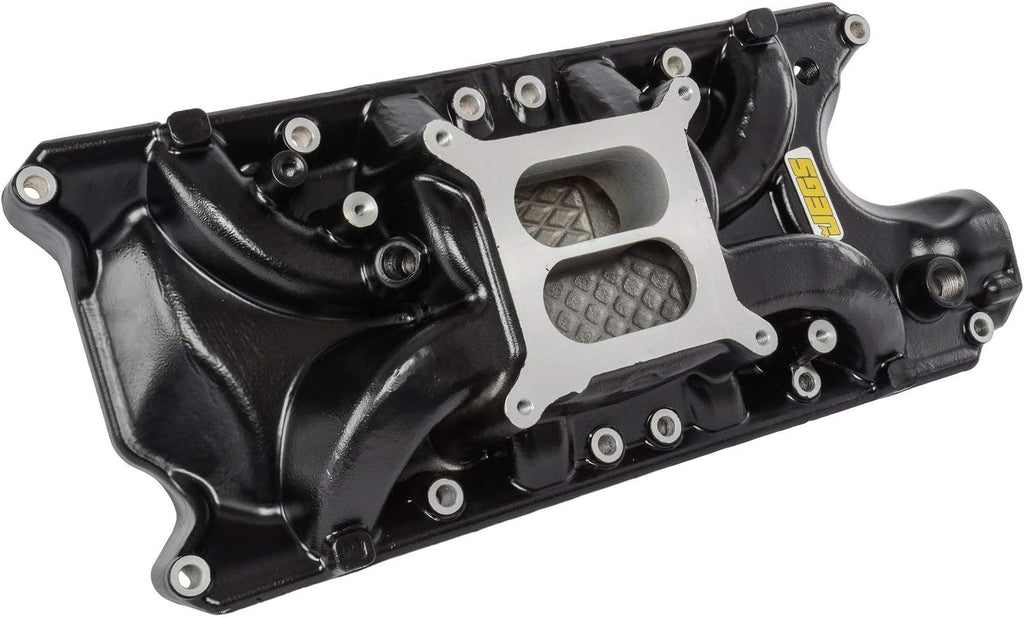

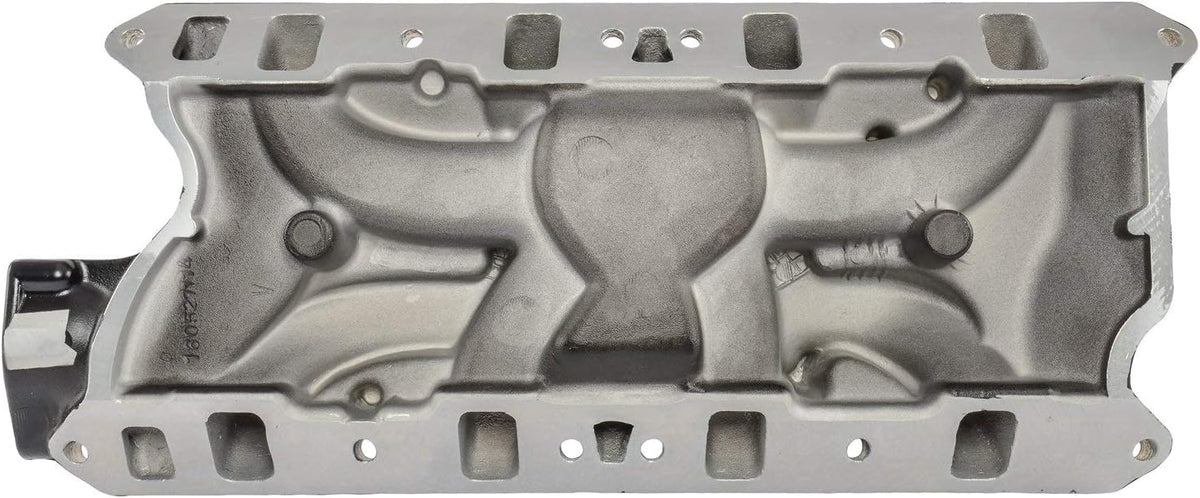

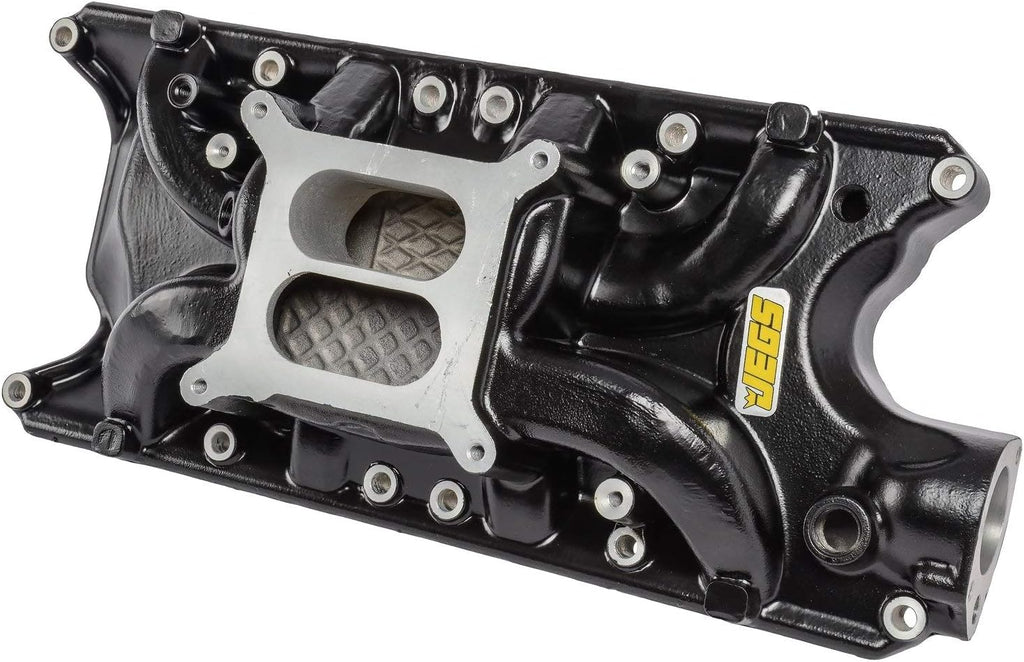

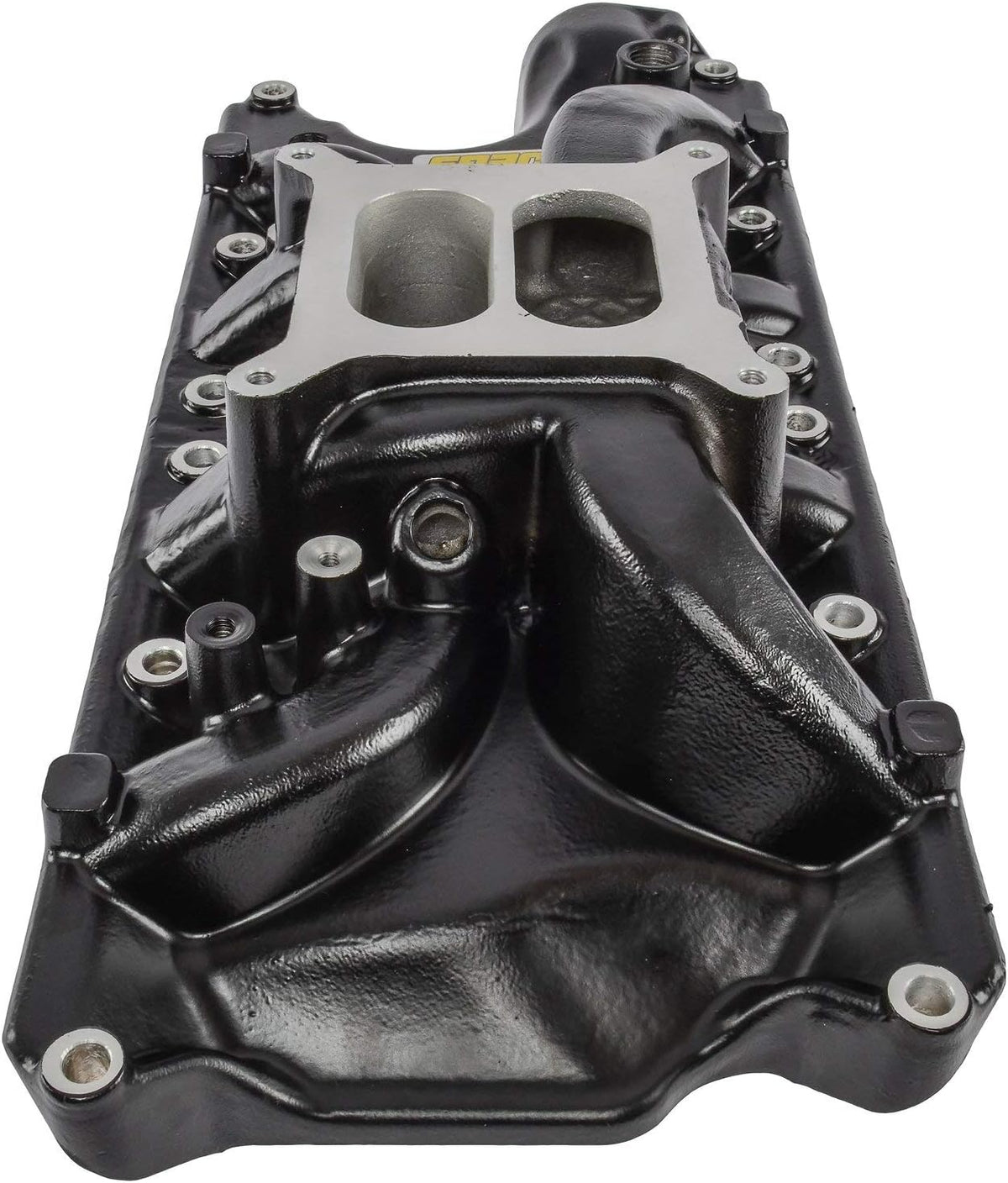

Black Aluminum Intake Manifold G9846
Black Aluminum Intake Manifold G9846
IMPROVE ENGINE PERFORMANCE AND HORSEPOWER with this higher flowing intake manifold compared to a stock cast iron intake
DESIGNED TO FIT WITH POPULAR AFTERMARKET SQUARE BORE 4150
CARBURETORS including Edelbrock, Holley, Quickfuel, Proform, and more
FITS small block Ford cylinder heads such as 289, 302, and others sharing the popular platform
IDLE TO 6000 RPM POWER BAND for street or mild race applications
Intake Manifold1962-1985 Small Block Ford 260, 289 & 302 (Except Boss 302)Dual Plane4-BBL Square Bore 4150/4160 Mounting Flange(non-EGR)RPM Range: Idle to 6000 RPMCast AluminumBlack Powder Coat Finish Port exit dimensions: 1.030 in. x 1.810 in.Recommended Intake Gasket: JEGS p/n 555-210200Intake gasket port matching is recommended for optimum performanceEstimated runner length - Shortest: 5 inEstimated runner length - Longest: 7 in.Manifold height: (A) 3.960 in., (B) 4.850 in.Click here to determine carburetor pad height.Aftermarket 4-bbl carbs are not compatible with Ford Auto Overdrive Transmission (AOD) unless used with JEGS Throttle Cable Bracket & Springs p/n 555-157050It will not fit 255ci enginesNo provision for divorced or heated chokeStock/stamped steel valve covers may require 3/16 in. (or thicker) valve cover gaskets. We recommend 555-21120 or 555-210270 for adequate runner clearance.JEGS Carb Recommendations/NotesCarburetors 570 CFM670 CFM770 CFMUp to 300 HP300 to 400 HP400 to 500 HPManual Choke 510-0-81570 510-0-81670 510-0-81770Electric Choke 510-0-80570 510-0-80670 510-0-80770Carburetor Studs 555-158401-1/2' StudsSuggested for carb and gasket only 555-158412' StudsSuggested for carb and 1/2' spacer 555-158422-1/2' StudsSuggested for carb and 1' spacer 555-158463-1/2' StudsSuggested for carb and 2' spacerCarburetor Base Gaskets 555-16100Open 555-161054-HoleIntake Manifold Bolts 555-83210Ford 289-351WCarburetor Fuel Inlet Lines & FittingsCarburetor SpacersFuel FiltersCarburetor Linkage, Choke Kits &...
