Dual 12 Sub Box & CXA800.1 E809046

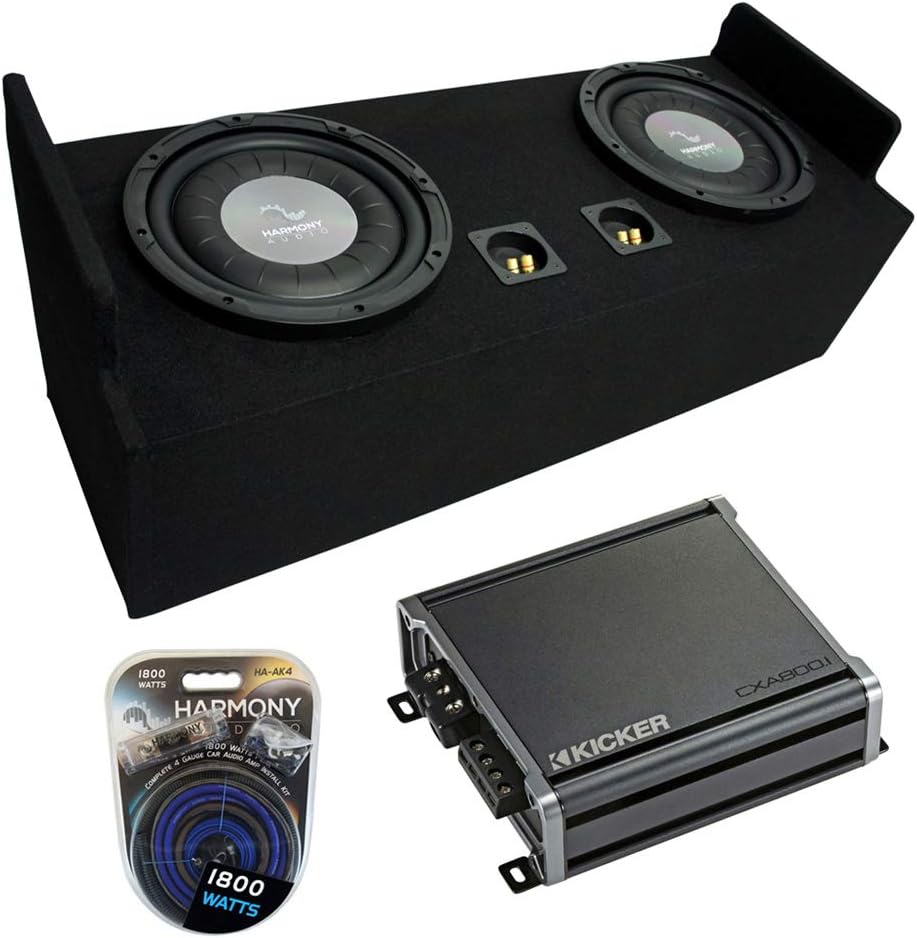

This Package Includes the Following Items:

• 1 x Custom Ford Ranger Extended Cab 83-12 Dual 12 Subwoofer Box
• 2 x Harmony Audio HA-F124 Car Stereo Flatline Series 12' Sub 800W Single 4 Ohm Subwoofer
• 1 x Kicker 46CXA8001 Car Audio Class D Amp Mono 1600W Peak Sub Amplifier CXA800.1

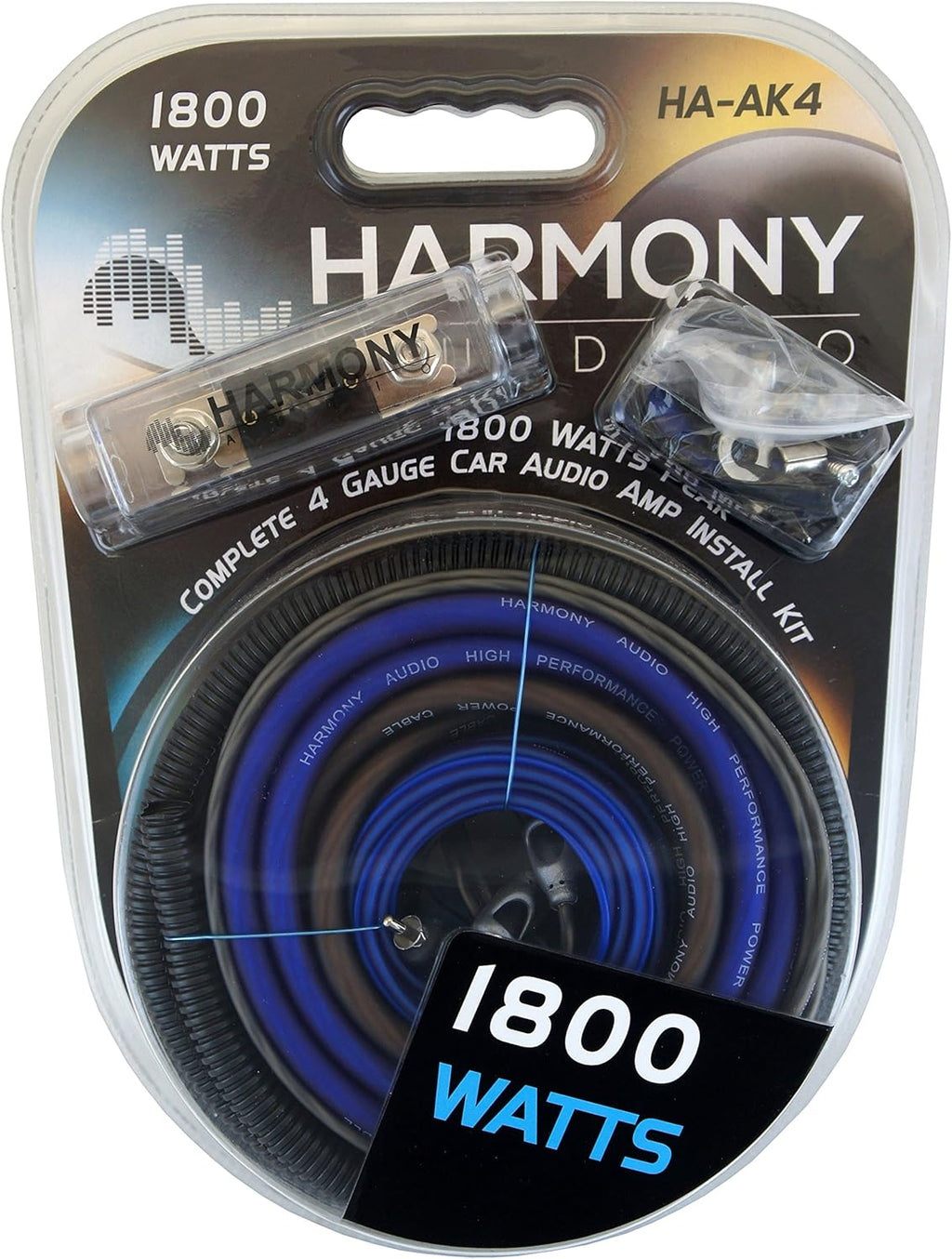

• 1 x Harmony Audio HA-AK4 Car Stereo Complete 4 Gauge 1800W Amp Amplifier Install Kit - Nickel

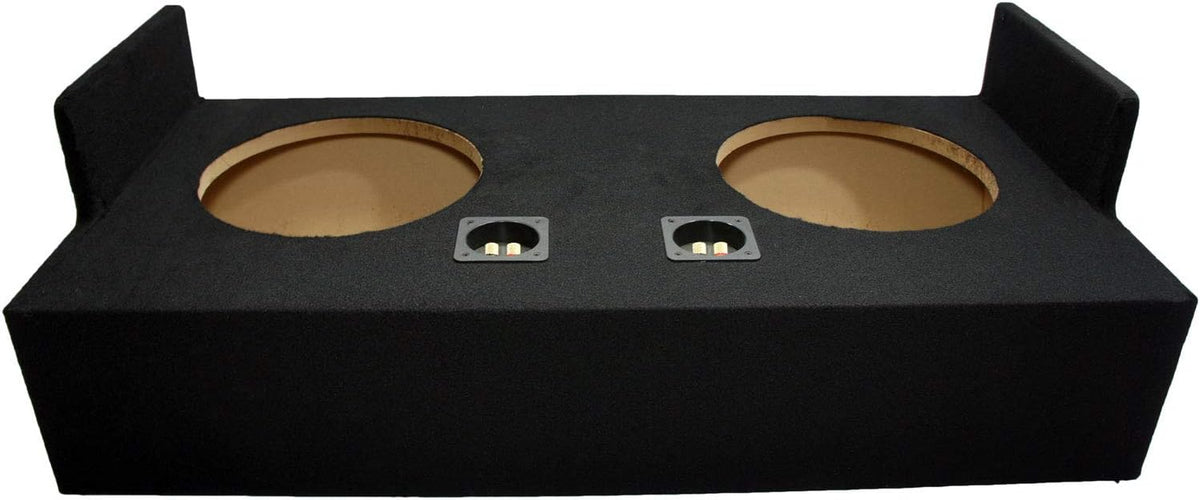

Custom Ford Ranger Extended Cab 83-12 Dual 12 Subwoofer Box:

• Dual 12' Ford Ranger Extended Cab 83-12 Truck Sub Box
• • Mounting Depth: 6-1/4'
  • Air Space: 1.97 Cubic Feet Per Sub
  • Sealed Enclosure
  • Dimensions: Width 40' x Height 14-1/2' x Top Depth 11-3/4' x Bottom Depth 12-3/4'
• Enclosure installs in the rear floor pan
• Once installed the jump seats will no longer be useable

• 1983-12 Ford Ranger Extended Cab

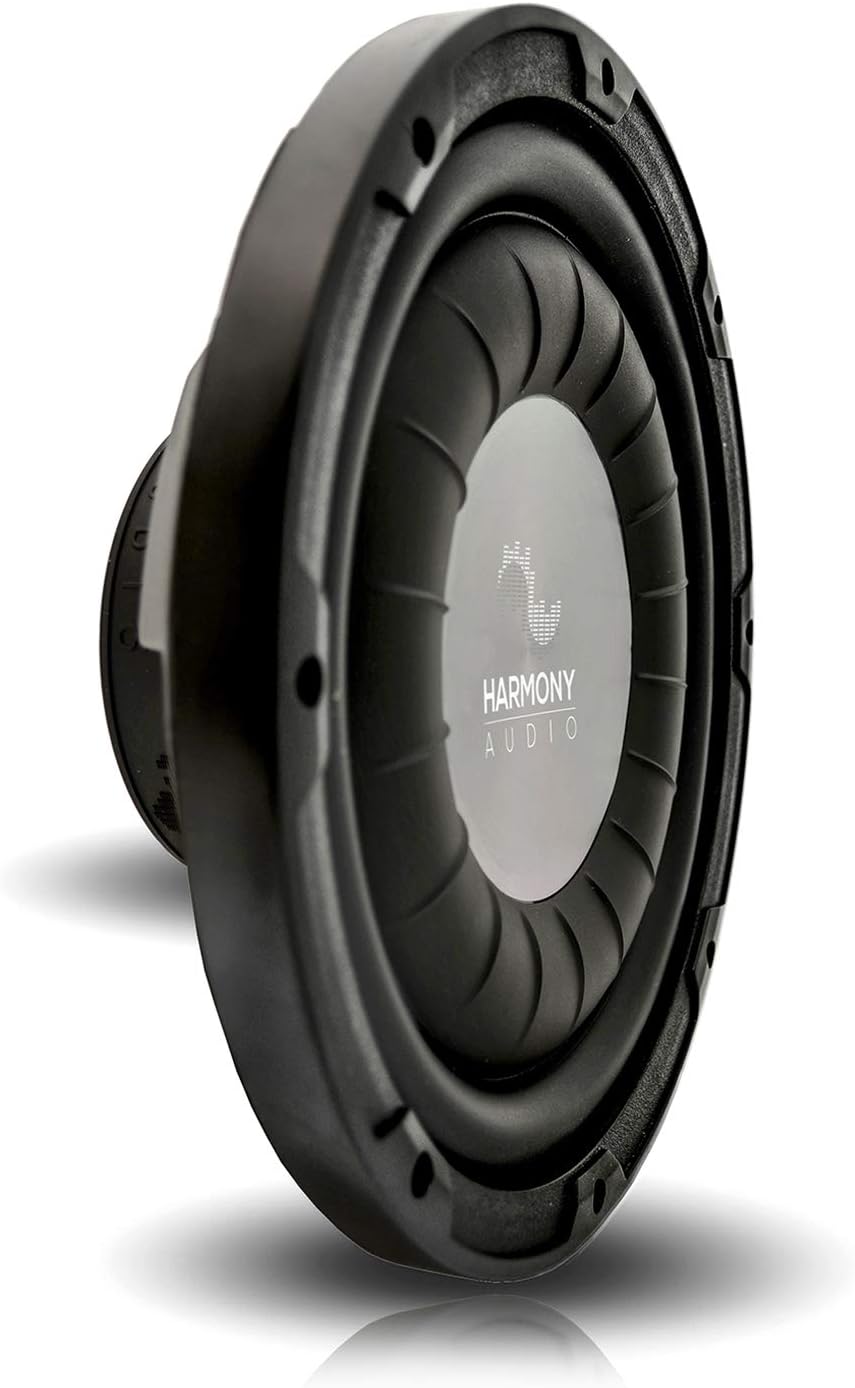

Harmony Audio HA-F124 Car Stereo Flatline Series 12' Sub 800W Single 4 Ohm Subwoofer:

Specifications:

• 12' Flatline Series Car Subwoofer
• Power Handling:
• Peak: 800 watts
• RMS: 400 watts

• Sensitivity: 87.3dB
• Frequency Response: 25Hz-1.2Hz
• Mounting Depth: 4 1/2'
• Mounting Cutout Diameter: 11 1/8'
• Single 4 Ohm

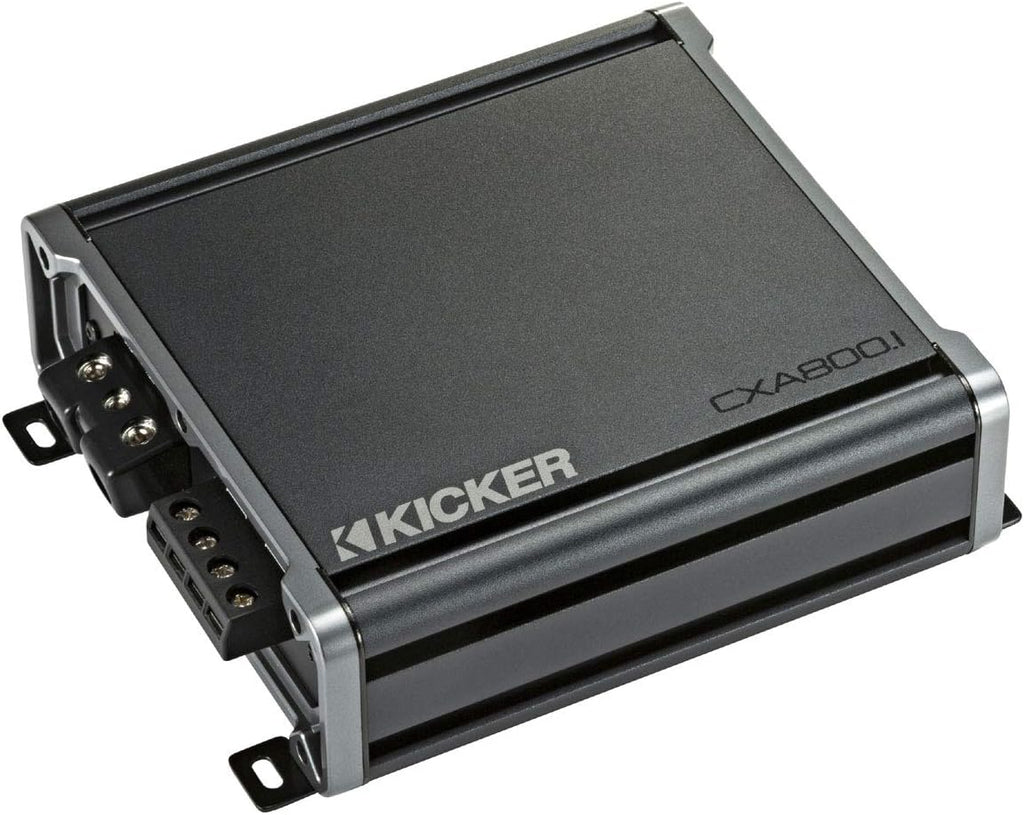

Kicker 46CXA8001 Car Audio Class D Amp Mono 1600W Peak Sub Amplifier CXA800.1:

• Power Handling:
  • 600 Watts x 1 @ 2 Ohm RMS
  • 1200 Watts x 1 @ 2 Ohm PEAK
  • 800 Watts x 1 @ 1 Ohm RMS
  • 1600 Watts x 1 @ 1 Ohm PEAK
• Frequency Response: 25Hz - 200Hz
• Signal to Noise Ratio: 95dB
• Active Crossover: 12dB/octave, variable 50-200Hz, low pass only
